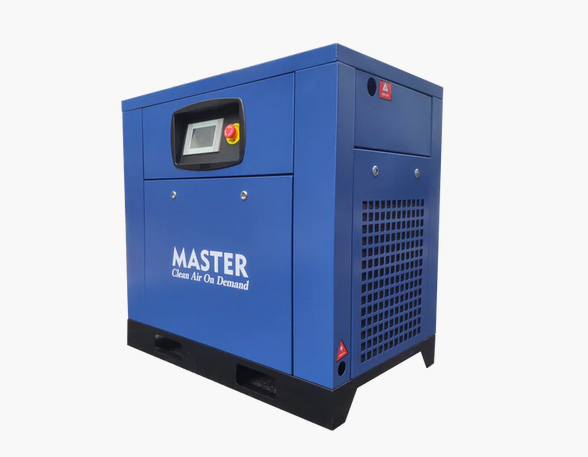

Model: MST-30VFD
40 HP Rotary Screw
Air Compressor
Heavy-duty industrial air delivery solution engineered for continuous operations. Outfitted with a Variable Frequency Drive to adjust airflow on demand and an energy efficient, high-performance design built for demanding industrial environments. Includes a 10-year Warranty with Free Parts and Service Guidance.
Key Features
- Advanced Control: Full-colour LED Touchscreen Programmable Logic Controller with Variable Frequency Drive featuring Soft Start (Preprogrammed Plug & Play System).
- Direct Drive Efficiency: Direct Drive results in low maintenance and high efficiency by eliminating power transmission losses due to belts and pulleys.
- Premium Motor: Equipped with a TEFC IE4 Permanent Magnet Heavy-duty Induction Motor.
- Airflow Adjustment: Variable Frequency Drive adjusts the airflow precisely on demand.
- Complete System Filters: Built with a heavy-duty air filter, oil filter, and air/oil separator.
- Integrated Cooling: Heavy-duty inbuilt thermostatically controlled cooling fan prevents overheating during long cycles.
- Plug & Play System: Comes preprogrammed and ready to use. Connect your electrical, connect your equipment, and turn it on!
- Options Available: Additional options and add-ons are available upon request.
$11,750.00 CAD / UNIT
Quantity:
● Status: Unit In-Stock & Ready for Dispatch
Technical Specifications
| Model | MST-30VFD |
| kW / HP | 30 kW / 40 HP |
| CFM & PSI | 187 CFM @ 102 PSI Heavy-duty Industrial Air Delivery |
| Adjustable Pressure | Pressure can be adjusted from 50 PSI to 145 PSI |
| Pressure Rating | 145 PSI |
| Electrical Configuration | 460 to 480 Volt, Three Phase, 60 Hz |
| Duty Cycle | Continuous Duty (100% Duty Cycle) |
| Motor Type | TEFC IE4 Permanent Magnet Heavy-duty Induction Motor |
| Drive System | Direct Drive (Beltless System) |
| Oil Type | ISO46 Compressor Oil (Synthetic and Non-Detergent) |
| Outlet Size | 1 Inch |
| Net Dimensions | 53 x 35 x 46 Inches (L*W*H) |
| Weight | 740 lbs |
| Warranty | 10-Year Warranty with Free Parts and Service Guidance |
