Industrial
OFFICIAL CANADIAN DISTRIBUTION CENTER
Mfr Model: K3477-1 / Item # LNEK34771
LINCOLN ELECTRIC

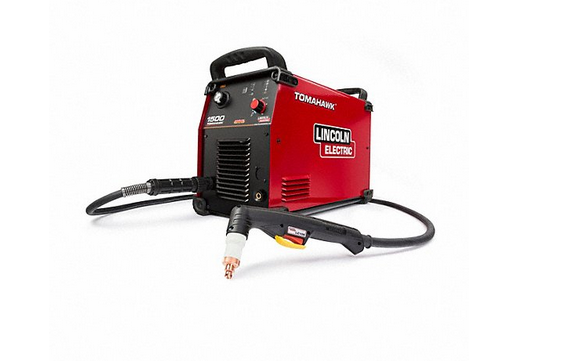

Tomahawk® 1500 Plasma Cutter
Professional heavy-duty handheld plasma cutting system engineered for industrial environments and demanding fabrication shops. Features clean cutting capability up to 1-1/2 inches thick on a multi-voltage high duty cycle platform.
Product Inclusions & Setup
- Premium Hand Torch: Supplied with the high-performance LC105 Hand Torch featuring a long 25 ft (7.6 m) cable assembly.
- Built-In Diagnostics: Equipped with an integrated air regulator and visual front-panel pressure gauge.
- Heavy-Duty Grounding: Includes an industrial-grade work clamp and heavy-gauge return cable.
- Ready-to-Run Package: Ships complete with a dedicated consumable starter kit and a rugged 10 ft power cord (Bare Leads configuration).
$14,299.00 CAD / UNIT
Quantity:
● Status: Unit In-Stock & Ready for Dispatch
Technical Specifications
| Item Type | Plasma Cutter |
| Series Name | Tomahawk® 1500 |
| Manufacturer Model | K3477-1 |
| Maximum Material Thickness | 1 1/2 in |
| Minimum Material Thickness | 1/4 in |
| Cutting Configuration | Gouging, Plasma Cutting |
| Input Voltage Compatibility | 208 V, 230 V, 380 V, 460 V, 575 V |
| Electrical Phase | Single-Phase or Three-Phase |
| Input Frequency | 50/60 Hz |
| Maximum Output Current | 100 A |
| Plasma Cutting Minimum Current | 5 A |
| Plasma Cutting Output @ Duty Cycle | 100 A @ 140 V (60% 3-Phase) / 60 A @ 140 V (100% 1-Phase / 3-Phase) |
| Required Continuous Air Flow | 6.7 cfm |
| Maximum Compressor Air Pressure | 87 psi |
| Plasma Gas Type Options | Clean Compressed Air, O2 (Oxygen) |
| Plasma Torch Assembly | Handheld LC105 Torch (25 ft length) |
| Ground Cable Length | 25 ft |
| Power Cord Length / Plug Type | 10 ft / Bare Leads |
| Enclosure Protection Class | IP23 Standards |
| Machine Dimensions | 25.4" D x 30.1" W x 17.9" H |
| Net Machine Weight | 96 lb (Shipping Weight: 110.28 lbs) |
| Country of Origin | United States (Subject to change) |
